FUME CUPBOARD
TECHNICAL TARGET
Technical Target - an organization which has through professional's - with many decades of versatile experiences in Laboratory projects, such as supply, install & Maintain the lab furniture, besides its related scopes sucha s pre-civil, Eletrical, Machanical, Plumbing, Gas connections etc
Fume Cupboard
SPECIFICATION:Manual Opertaing System
FC — 1200/1500/1800 Dimensions: 1200/1500/1800(L) x 900(D) x 2400(H)mm
Outer Upper body:
Made from 18mm thick Melamine Laminated Plywood.
Front Sash: Made of 6mm thick tempered clear glass; with flexible counter weight pulley system in for easy opening and closing mechanism.
Internal Lining: Made of acid / chemical resistant, water and scratch proof Phenilic Resin/Compact Laminate.
Worktop: Made from 19mm thick Epoxy with spill control edge.
Storage Cabinets: Under bench storage cabinets for storing chemicals made of Resin/Compact laminate.
FC — 1200/1500/1800 Dimensions: 1200/1500/1800(L) x 900(D) x 2400(H)mm
Outer Upper body:
Made from 18mm thick Melamine Laminated Plywood.
Front Sash: Made of 6mm thick tempered clear glass; with flexible counter weight pulley system in for easy opening and closing mechanism.
Internal Lining: Made of acid / chemical resistant, water and scratch proof Phenilic Resin/Compact Laminate.
Worktop: Made from 19mm thick Epoxy with spill control edge.
Storage Cabinets: Under bench storage cabinets for storing chemicals made of Resin/Compact laminate.
Frames: Heavy duty cantilever frame —
made of mild steel Epoxy powder coated.
Services & Fittings:
Double electric outlet 13 Amp.
Single water outlet.
Epoxy resin sink (Drip Cup).
LPG gas outlet.

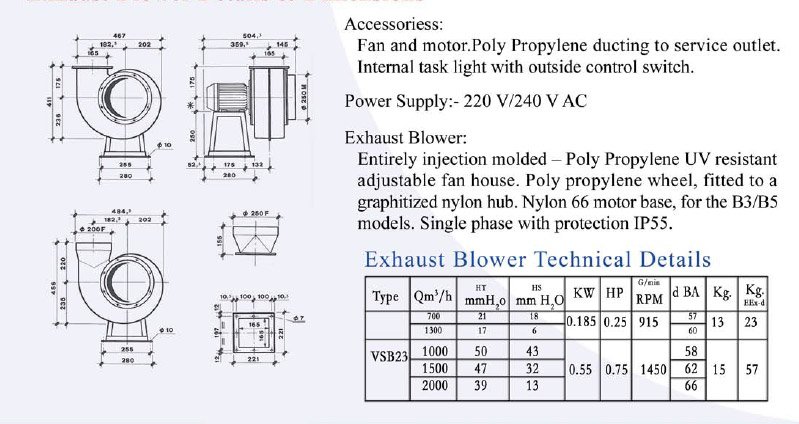

Exhaust Blower Details & Dimensions
